The FD value is a thermal input unit used to quantify the effectiveness of dry heat depyrogenation processes for destroying bacterial endotoxins on pharmaceutical components such as glass vials, ampoules, and laboratory glassware.
FD expresses the equivalent exposure time in minutes at 250 °C delivered during a depyrogenation cycle.
By definition: FD = 1 corresponds to 1 minute of exposure at 250 °C
This allows comparison of depyrogenation cycles operating at different temperatures and durations using a single standardized lethality unit.
How to Use the Tool for FD Calculation

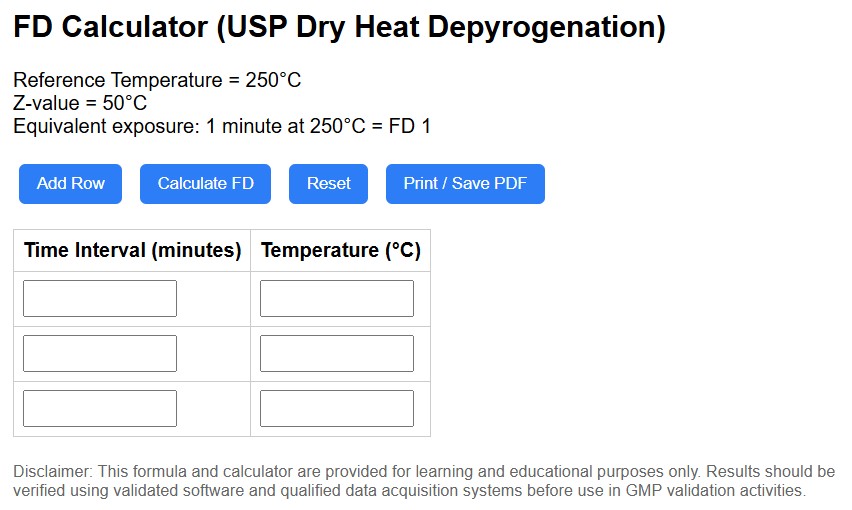

The HTML FD calculator is used to determine the total depyrogenation thermal input delivered during a dry heat cycle based on temperature–time data. Enter the time interval (minutes) and corresponding measured product temperature (°C) for each recorded point from your thermocouple logger, including heat-up, dwell, and cool-down phases. Click “Add Row” to insert additional measurements and then select “Calculate FD” to compute the accumulated equivalent minutes at 250 °C. The tool automatically converts each temperature contribution using the standard z-value of 50 °C and sums them to generate the total FD. Use the lowest probe value to confirm worst-case cold-spot depyrogenation performance
Click here to access the calculator >>>>
Why FD Value is Important
Dry heat depyrogenation targets bacterial endotoxins, which are significantly more resistant to heat than microbial spores. Because endotoxin destruction follows predictable thermal kinetics, FD provides a reliable measurement of total depyrogenation effectiveness.
FD calculations are commonly used during:
- depyrogenation tunnel validation
- batch oven (hot air) qualification
- cold-spot identification studies
- worst-case condition verification
- change control and requalification activities
Standard Parameters Used in FD Calculation (USP Convention)
| Parameter | Typical Value |
|---|---|
| Reference temperature | 250 °C |
| z-value | 50 °C |
| Unit definition | Equivalent minutes at 250 °C |
These parameters allow temperature data collected throughout the cycle to be converted into a single accumulated depyrogenation value.
How FD is Calculated
FD is determined by integrating temperature exposure over the entire depyrogenation cycle, including:
- pre-heating phase
- heating/dwell or depyrogenation phase
- cooling phase
Temperature measurements taken at defined time intervals are converted into equivalent lethality at 250 °C and summed to obtain the total FD delivered by the process.
